47 Inch Wide Remote Condenser For KM-2500SRH3 Ice Machines
Hoshizaki URC-23F
Hoshizaki URC-23F

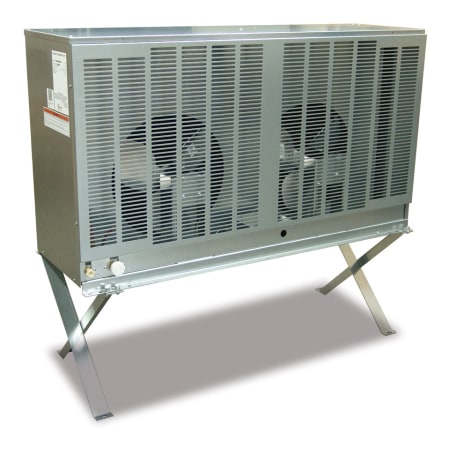

Hoshizaki URC-23F 47 Inch Wide Remote Condenser For KM-2500SRH3 Ice Machines
- Depth: 14.0625 in.
- Height: 40.5 in.
- Width: 46.375 in.
Description & Highlights
Hoshizaki 47 Inch Wide Remote Condenser For KM-2500SRH3 Ice Machines
Ice machine configurations with remote condensers should be installed by EPA-certified service personnel.
This appliance is designed to be hardwired into your building’s power supply. Please verify that your building’s power supply is compatible with this appliance before purchase.
Features:
- Designed for use with select KM series cube ice machines
- 24" clearance recommended for best performance
- May be installed up to 55 feet away (fitting to fitting) from the host ice machine with some restrictions on vertical differential
- Refrigerant line sets may be purchased or fabricated for use between condenser and ice machine
- Covered by 3 Year Manufacturer Warranty, with 5 Year parts coverage for compressor
Specifications:
- Width: 46-3/8"
- Height: 40-1/2"
- Depth: 14-1/16"
- Product Weight: 158 lbs
- Power Specifications: 120V, 60Hz, single phase
- Refrigerant type: R-404A
Specifications
Specifications
Depth | 14.0625 in. | Height | 40.5 in. |
Nominal Width | 47 in. | Product Weight | 158 lbs. |
Width | 46.375 in. | Refrigerant | R-404a |
Electrical Phases | 1 | Frequency | 60 Hertz |
Operating Temperature (Max) | 122 °F | Operating Temperature (Min) | -20 °F |
Power Source | Hardwired | Voltage | 120 |
Approved for Commercial Use | Yes | Certifications | ISO, UL |
Country Of Origin | USA | Energy Star | No |
Made in America | Yes | Manufacturer Warranty | 5 Year Compressor Parts, 3 Year |
- Depth: 14.0625 in.
- Height: 40.5 in.
- Width: 46.375 in.
