- Sedona by Lynx L500R LP
58500 BTU 30 Inch Wide Liquid Propane Built-In Grill with Rear Infrared Burner Rotisserie System
Sedona by Lynx L500R LP
Sedona by Lynx L500R LP

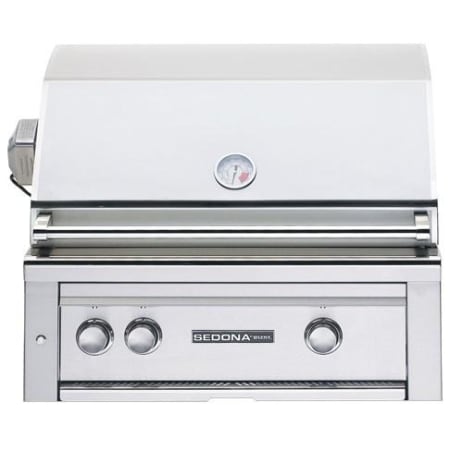

Sedona by Lynx L500R LP 58500 BTU 30 Inch Wide Liquid Propane Built-In Grill with Rear Infrared Burner Rotisserie System
- Depth: 25.3125 in.
- Height: 24.625 in.
- Total Cooking Area: 733 sq. in.
- Width: 30 in.
- Rotisserie: Yes
- Burner Style: Infrared, Stainless Steel
- Number Of Burners: 3
- Fuel Type: Liquid Propane
- Total BTUs: 58500
- Depth: 25.3125 in.
- Height: 24.625 in.
- Width: 30 in.
Description & Highlights
Sedona by Lynx 58500 BTU 30 Inch Wide Liquid Propane Built-In Grill with Rear Infrared Burner Rotisserie System
Product Features:
- Durable stainless steel tube burners positioned under briquette tray for consistent evenly-distributed heat
- Rotisserie burner can be operated independently of main burners
- Knob activated spark ignition system includes battery back-up ensuring ignition in the event of power failure
- Robust electro-polished stainless steel grates
- Large easy to read temperature gauge
- Spring assisted hood kit allows safe and easy opening
- 1049-sq.-in. cooking surface (728 primary, 321 secondary)
- Controls are illuminated by blue LEDs
- Grilling surface is illuminated by a halogen light
- Stainless steel welded construction removes gaps where grease and moisture can condense
Product Technologies:
- Ceramic Radiant Briquettes: These high-density ceramic briquettes are clipped in for effortless cleaning and ensure even heat distribution across the entire grilling surface. Flare-ups are reduced by keeping grease and oil away from direct flames. Further, any drippings will instead hit the briquettes and vaporize which returns flavors to the food.
- Superior Construction and Finish: This grill is constructed of heavy gauge stainless steel manufactured in the USA to ASTM standards. All welded joints, seams and edges have been exquisitely polished.
- Rotisserie System with Infrared Burner: The infrared burner in this system spans the back of the cooking area and provides consistent heat for cooking with included heavy-duty spit rod and spit forks. The rotisserie motor is compact and easy to remove when not in use.
Specifications:
- BTU Output: 58500
- Height: 24.625"
- Width: 30"
- Depth: 25.3125"
- Cutout Height: 10"
- Cutout Width: 29"
- Cutout Depth: 21.25"
- Control Type: Turn Knob
- Fuel Type: Liquid Propane
- Burner Style: Infrared, Stainless Steel
- Number of Burners: 3
- Ignition Type: Electronic
- Total Cooking Area: 733
- Rotisserie: Yes
- Height Closed: 24.625"
- Height Opened: 33"
- Total BTUs: 58500
- L500 LP: 46000 BTU 30 Inch Wide Liquid Propane Built-In Grill
- L500 NG: 46000 BTU 30 Inch Wide Natural Gas Built-In Grill
- L500R LP (This Model): 58500 BTU 30 Inch Wide Liquid Propane Built-In Grill with Rear Infrared Burner Rotisserie System
- L500R NG: 58500 BTU 30 Inch Wide Natural Gas Built-In Grill with Rear Infrared Burner Rotisserie System
Specifications
Specifications
Cutout Depth | 21.25 in. | Cutout Height | 10 in. |
Cutout Width | 29 in. | Depth | 25.3125 in. |
Height | 24.625 in. | Nominal Depth | 26 in. |
Nominal Height | 25 in. | Nominal Width | 30 in. |
Product Weight | 168 lbs. | Total Cooking Area | 733 sq. in. |
Width | 30 in. | Rotisserie | Yes |
Burner Style | Infrared, Stainless Steel | Control Type | Knob |
Installation Type | Built-In | Number Of Burners | 3 |
Theme | Contemporary | BTU Output | 58500 |
Fuel Type | Liquid Propane | Ignition Type | Electronic |
Total BTUs | 58500 | Country Of Origin | USA |
Made in America | Yes | Manufacturer Warranty | 2 Year Parts, 5 Year Parts, Limited Lifetime |
Outdoor Approved | Yes |
- Depth: 25.3125 in.
- Height: 24.625 in.
- Width: 30 in.
