- Brands
- Velux
- Curb Mounted
- Velux FCM 1430 0005
14-1/2 x 30-1/2 Inch Tempered LowE3 Fixed Curb Mount Skylight from the FCM Collection

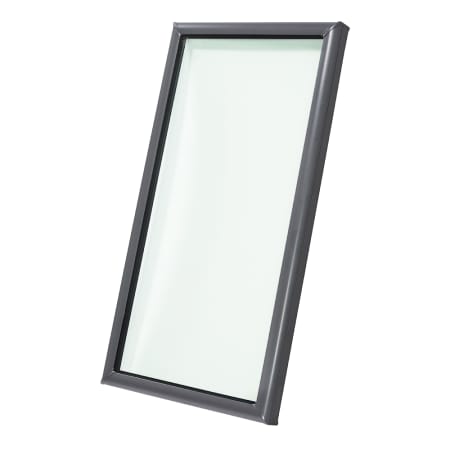

Velux FCM 1430 0005
Velux FCM 1430 0005
Velux FCM 1430 0005 14-1/2 x 30-1/2 Inch Tempered LowE3 Fixed Curb Mount Skylight from the FCM Collection
- Height: 35.375 in.
- Width: 19.375 in.
- Skylight Glazing: Tempered
- Skylight Ventilation: Non-Venting
- Depth: 3 in.
- Height: 35.375 in.
- Width: 19.375 in.
Description & Highlights
Velux 14-1/2 x 30-1/2 Inch Tempered LowE3 Fixed Curb Mount Skylight from the FCM Collection
VELUX FCM fixed curb mount skylights are ideal for replacing existing curb mount skylights, including old plastic bubble skylights. It can be installed on a flat roof at 0° up to a 60° roof pitch on a site-built curb. VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life, all while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance the brightness and beauty of a room.
Features:
- Inside curb dimensions for VELUX FCM 1430 models are 14-1/2 in. by 30-1/2 in. and outside curb dimensions are 17-1/2 in. by 33-1/2 in.
- Qualifies for the VELUX 10-year "No Leak" installation warranty when installed with VELUX ECL flashing on a shingle roof with a pitch between 10° and 60°, or VELUX ECW flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately).
Specifications:
- Width: 19-3/8"
- Height: 35-3/8"
- Depth: 3"
- Maximum Roof Pitch (Degrees): 60
- Minimum Roof Pitch (Degrees): 0
- Rough Opening Height: 33-1/2"
- Rough Opening Width: 17-1/2"
- Inside Curb Height: 30-1/2"
- Inside Curb Width: 14-1/2"
- Outside Curb Height: 33-1/2"
- Outside Curb Width: 17-1/2"
- Skylight Ventilation: Fixed Non-Vented
- Skylight Glazing: Tempered
Similar Products:
- FCM 1430 0005 (This Model): 14-1/2 Inch x 30-1/2 Inch
- FCM 1446 0005: 14-1/2 Inch x 46-1/2 Inch
- FCM 2222 0005: 22-1/2 Inch x 22-1/2 Inch
- FCM 2230 0005: 22-1/2 Inch x 30-1/2 Inch
- FCM 2234 0005: 22-1/2 Inch x 34-1/2 Inch
- FCM 2246 0005: 22-1/2 Inch x 46-1/2 Inch
- FCM 3030 0005: 30-1/2 Inch x 30-1/2 Inch
Specifications
Specifications
Cutout Height | 33.5 in. | Depth | 3 in. |
Height | 35.375 in. | Inside Curb Height | 30.5 in. |
Inside Curb Width | 14.5 in. | Maximum Roof Pitch (Degrees) | 60 Degrees |
Minimum Roof Pitch (Degrees) | 0 Degrees | Outside Curb Height | 33.5 in. |
Outside Curb Width | 17.5 in. | Solar Heat Gain Coefficient | 0.27 |
U-Factor | 0.49 | Width | 19.375 in. |
Low-E | Yes | Skylight Glazing | Tempered |
Skylight Ventilation | Non-Venting | Country Of Origin | USA |
Energy Star | Yes | Made in America | Yes |
- Depth: 3 in.
- Height: 35.375 in.
- Width: 19.375 in.
