- Viking VCWH53648
36 Inch Wide Wall Mounted Range Hood Shell with Commercial-Style Baffle Filter System
Viking VCWH53648
Viking VCWH53648

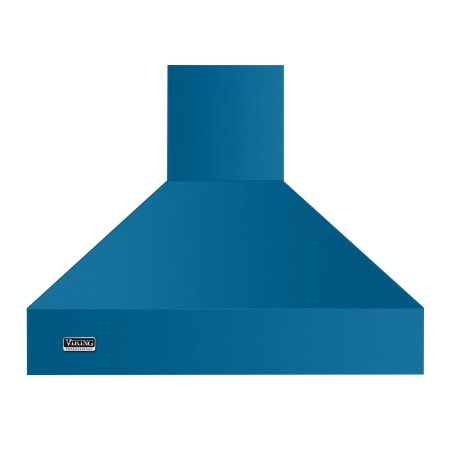

Viking VCWH53648 36 Inch Wide Wall Mounted Range Hood Shell with Commercial-Style Baffle Filter System
- Ceiling Height (Max): 120 in.
- Ceiling Height (Min): 114 in.
- Depth: 24 in.
- Duct Size: 10" Round, 7" Round
- Height: 18 in.
- Nominal Width: 36 in.
- Blower Type: Built-In, In-Line, External
- Filter Type: Baffle Filters
- Depth: 24 in.
- Height: 18 in.
- Width: 35.875 in.
Description & Highlights
Viking 36 Inch Wide Wall Mounted Range Hood Shell with Commercial-Style Baffle Filter System
Important: This is a special order item. Orders for special order items from Viking are non-cancelable and non-returnable.
Features:
- Built-in heat sensor activates the blower (not included) to full power if cooking temperatures reach an uncomfortable level
- Blowers must be purchased separately and are available in internal, external, and in-line models
- Backlit LED knobs extend and illuminate to control lighting levels or fan speed, then fully retract when not in use for easy cleaning
- Long-life LED bulbs provide dimmable lighting controls for enhanced cooktop visibility
- Heat lamps help keep food warm until ready to serve
- Commercial-style, dishwasher-safe stainless steel baffle filters efficiently remove grease vapors, smoke, and odors from the air
- Covered under a 2 year complete unit, 5 year motor, and 90 day cosmetic warranty
Specifications:
- Duct Size: 10" Round, 7" Round
- Duct Discharge: Vertical
- Bulb Type: LED
- Width: 35-7/8"
- Depth: 24"
- Height: 18"
- Ceiling Height: 114" to 120"
- Height Above Cooktop: 30" to 36"
- Voltage: 120V
- Watts Per Bulb: 8W
Specifications
Specifications
Ceiling Height (Max) | 120 in. | Ceiling Height (Min) | 114 in. |
Depth | 24 in. | Duct Size | 10" Round, 7" Round |
Height | 18 in. | Height Above Cooktop | 30" to 36" |
Nominal Width | 36 in. | Width | 35.875 in. |
Available Without Blower | Yes | Ductless | No |
Blower Type | Built-In, In-Line, External | Bulb Type | LED |
Control Type | Knob | Duct Discharge | Vertical |
Filter Type | Baffle Filters | Installation Type | Full Installation |
Voltage | 120 | Watts Per Bulb | 8 |
Collection | Professional 5 | Manufacturer Warranty | 90 Day Cosmetic, 5 Year Motor, 2 Year Complete Unit |
Outdoor Approved | No | Series | 5 Series |
- Depth: 24 in.
- Height: 18 in.
- Width: 35.875 in.
