- Brands
- Windster RA-34LU30
520 CFM 30 Inch Wide Stainless Steel Under Cabinet Range Hood with LED Lighting and Baffle Filters from the RA-34L Collection
Windster RA-34LU30
Windster RA-34LU30
Windster RA-34LU30 520 CFM 30 Inch Wide Stainless Steel Under Cabinet Range Hood with LED Lighting and Baffle Filters from the RA-34L Collection
- CFM: 520
- Depth: 22 in.
- Duct Size: 6" Round
- Height: 9 in.
- Nominal Width: 30 in.
- Blower Type: Built-In
- Filter Type: Baffle Filters
- Sones: 5.4
- Depth: 22 in.
- Height: 9 in.
- Width: 29.75 in.
Wall Mount Conversion Duct Cover
Do you need a Duct Cover? The selection below works with this unit. Mouse over text for image of the option. If there is a magnifying glass at the end of the text clicking it will provide additional details.Please Select One
Description & Highlights
Windster 520 CFM 30 Inch Wide Stainless Steel Under Cabinet Range Hood with LED Lighting and Baffle Filters from the RA-34L Collection
Features:
- Includes a powerful 520 CFM built-in blower, ideal for quickly clearing your kitchen of unwanted air pollution
- Easy to clean dishwasher safe baffle filters trap and remove unwanted contaminants such as grease and odors
- Bathe your cook top in the warm glow of 2 LED bulbs
- Push button 3-speed controls provide for unparalleled mastery of your kitchen environment
- Beautiful and stylish stainless steel construction
Product Technologies:
- Seamless Design: All Windster range hoods make use of manufacturing and design techniques that eliminate panel gap which is frequently found on competing products. A seamless design adds a decidedly upscale visual appeal while also contributing to the product's overall durability. Airflow efficiencies are also noteworthy as there is no other avenue for air to enter the hood besides what's being drawn in by the blower unit. Windster prides itself in offering all of its customers a high-quality, beautiful and long-lasting design.

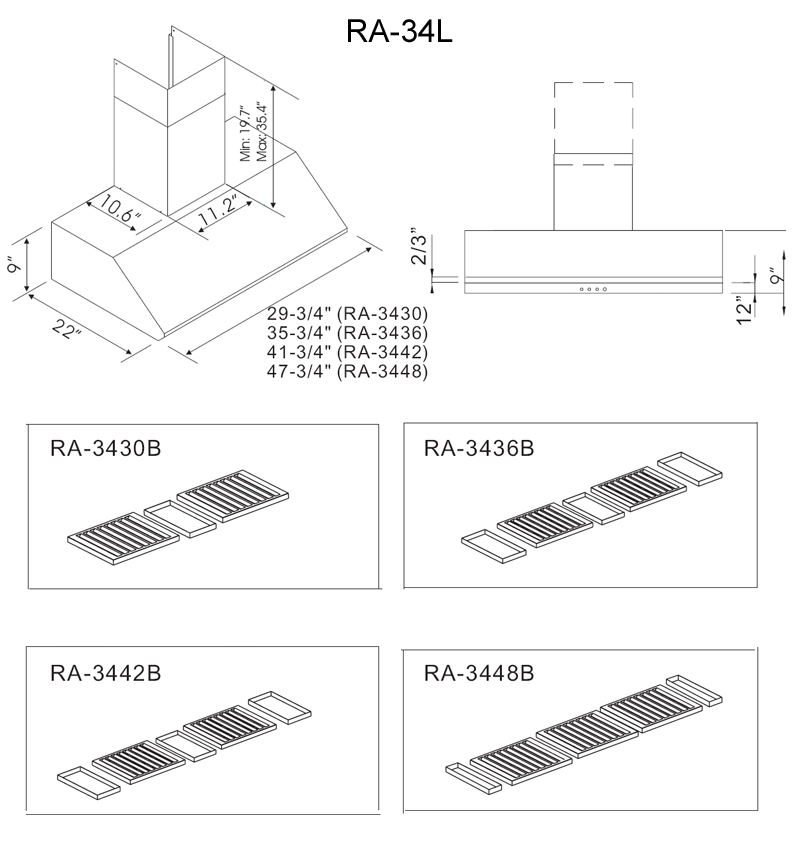

Specifications:
- CFM: 520
- Width: 29.75"
- Depth: 22"
- Height: 9"
- Height Above Cooktop: 27" to 33"
- Voltage: 120
- Sones: 5.4
- Speeds: 3
- Duct Discharge: Vertical
- RA-34LU30 (This Model): 520 CFM 30 Inch Wide Stainless Steel Under Cabinet Range Hood
- RA-34LU36: 520 CFM 36 Inch Wide Stainless Steel Under Cabinet Range Hood
- RA-34LU42: 520 CFM 42 Inch Wide Stainless Steel Under Cabinet Range Hood
- RA-34LU48: 520 CFM 48 Inch Wide Stainless Steel Under Cabinet Range Hood
Specifications
Specifications
CFM | 520 | CFM (High) | 520 |
Depth | 22 in. | Duct Size | 6" Round |
Height | 9 in. | Height Above Cooktop | 27" to 33" |
Nominal Width | 30 in. | Product Weight | 55 lbs. |
Width | 29.75 in. | Convertible to Ductless / Recirculating | No |
Ductless | No | Light Included | Yes |
Blower Type | Built-In | Bulb Type | LED |
Control Type | Push Button | Duct Discharge | Vertical |
Filter Type | Baffle Filters | Installation Type | Full Installation |
LED | Yes | Material | Stainless Steel |
Number of Bulbs | 2 | Theme | Modern, Industrial, Contemporary |
Amperage | 2 | Sones | 5.4 |
Speeds | 3 | Voltage | 120 |
Watts Per Bulb | 1.5 | ADA | No |
Approved for Commercial Use | No | Certifications | CSA |
Collection | RA-34L | Country Of Origin | Taiwan |
Manufacturer Warranty | 1 Year Labor, 2 Year Parts | Outdoor Approved | No |
- Depth: 22 in.
- Height: 9 in.
- Width: 29.75 in.
