- Zephyr ZSP-E48B

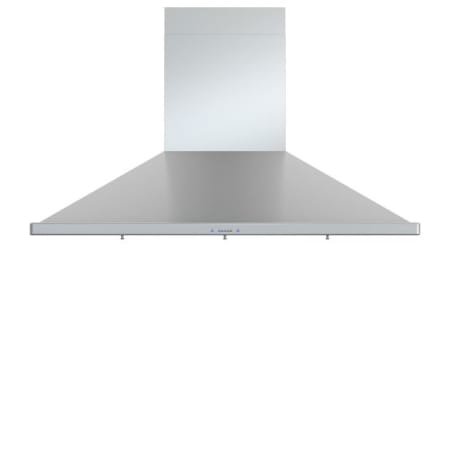

Siena Pro 350 - 1200 CFM 48 Inch Wide Wall Mounted Range Hood
Zephyr ZSP-E48B

Zephyr ZSP-E48B
Zephyr ZSP-E48B Siena Pro 350 - 1200 CFM 48 Inch Wide Wall Mounted Range Hood
- Ceiling Height (Max): 112 in.
- Ceiling Height (Min): 89.5 in.
- CFM: 1200, 350, 390, 450, 590
- Depth: 21.9375 in.
- Duct Size: 10" Round
- Height: 27.5, 42 in.
- Nominal Width: 48 in.
- Blower Type: Internal
- Filter Type: Baffle Filters
- Sones: 3.3, 3.5, 4, 6, 9
- Depth: 21.9375 in.
- Height: 27.5, in.42 in.
- Width: 47.875 in.
Description & Highlights
Zephyr Siena Pro 350 - 1200 CFM 48 Inch Wide Wall Mounted Range Hood
Features:
- Included 1200 CFM built-in blower quickly clears your kitchen of unwanted odors and residual cooking heat
- Included BriteStrip™ LED lighting provides optimal lighting for your cooking space
- Innovative 5 speed ICON Touch™ controls allow for precise control of your cooking environment
- Stylish and beautiful stainless steel construction
- Dishwasher safe stainless steel baffle filters
- Integrated auto delay-off function powers down the range hood after 5 minutes when activated
- Duct cover extension available for ceilings up to 12' (sold separately)
Product Technologies:
ICON Touch™ Controls: The 5-speed touch controls provide a wide array of function while seamlessly blending with your kitchen decor. An innovative set of indicators display information about fan speed, light intensity, filter status, and an auto-shutoff feature. On onboard memory chip remembers your last light and fan settings for even greater convenience.
Airflow Control Technology™: Zephyr hoods provide Airflow Control Technology™ which is a proprietary feature that limits blower CFM to 590, 390, or 290 to comply with local code restrictions.
Specifications:
- CFM: 1200
- Sones: 9.0
- Speeds: 5
- Duct Size: 10" Round
- Duct Discharge: Vertical
- Width: 47-7/8"
- Depth: 21-15/16"
- Height: 42"
- Maximum Ceiling Height: 144"
- Minimum Ceiling Height: 96"
- Height Above Cooktop: 26" to 34"
- Amperage: 9A
- Voltage: 120V
Specifications
Specifications
Ceiling Height (Max) | 112 in. | Ceiling Height (Min) | 89.5 in. |
CFM | 1200, 350, 390, 450, 590 | CFM (High) | 1200 |
Depth | 21.9375 in. | Duct Size | 10" Round |
Height | 27.5, 42 in. | Height Above Cooktop | 26" to 34" |
Maximum Height | 42 in. | Minimum Height | 27.5 in. |
Nominal Width | 48 in. | Product Weight | 64.5 lbs. |
Width | 47.875 in. | Available Without Blower | No |
Bulb Included | Yes | Convertible to Ductless / Recirculating | No |
Ductless | No | Includes Remote | No |
Light Included | Yes | Blower Type | Internal |
Bulb Type | LED | Control Type | Touch |
Duct Discharge | Vertical | Filter Type | Baffle Filters |
Installation Type | Full Installation | LED | Yes |
Material | Stainless Steel | Number of Bulbs | 2 |
Theme | Contemporary, Industrial, Modern, Traditional | ACT (Airflow Control Technology) | Yes |
Amperage | 9 | Fan Speeds | 5 |
Frequency | 60 Hertz | Maximum Sones | 9 |
Minimum Sones | 3.3 | Sones | 3.3, 3.5, 4, 6, 9 |
Speeds | 5 | Voltage | 120 |
Watts Per Bulb | 9 | Approved for Commercial Use | No |
Energy Star | No | Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
Outdoor Approved | No | Series | Siena Pro |
- Depth: 21.9375 in.
- Height: 27.5, in.42 in.
- Width: 47.875 in.
